TSC ttp-2410m / 346M / 644M Pro industrial printers

Brand: TSC
Model: ttp-2410m Pro

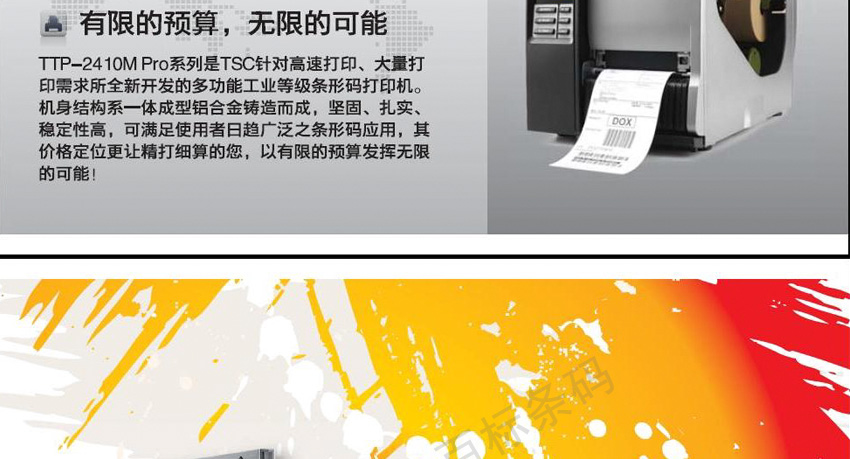

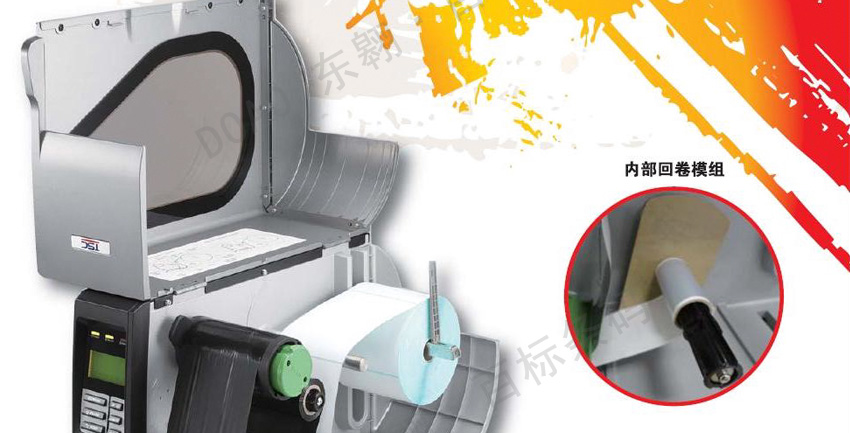

The main feature of the product is the ttp-2410m Pro series, which is a new multi-functional industrial grade bar code printer developed for high-speed, large print demand. Fuselage structure is a integrated aluminum alloy casting and become, strong, solid, high stability, can meet users increasingly extensive application of bar code, and its price positioning more let you careful calculation and strict budgeting, with the limited budget, exert limitless possibilities! TTP - 2410 - m Pro flagship model have been on the market at present with bar code printer in addition, there has never been an addition model can have high standard product specification, at the same time the basic equipped with multi-function, high efficiency to print.

DetailParameterDownloadVideo data

models

addition

TTP - 2410 - m Pro

TTP - 346 - m Pro

TTP - 644 - m Pro

Print resolution

203 DPI

300 DPI

600 DPI

Print type

Heat transfer/heat inductance

The printing speed

The highest 12 ips

Up to 8 ips

Top 4 ips

Maximum print width

104 mm (4.09 ")

Maximum print length

4064 mm (160)"

1854.2 mm (73)"

1016 mm (40)"

structure

Chassis and main body: alloy casting; Metal shell; Transparent window design

size

505 mm (D) * 270 mm (W) * 308 mm (H)

The weight of the

15 KG

The size of the paper roll

208.3 mm (8.2 ") outer diameter

Carbon belt loading

1 "inner diameter, maximum capacity of 600 m carbon belt (inner volume and external volume are applicable)

Carbon belt width

25.4 mm - 114.3 mm (1 "-4.5")

Central processing unit (CPU)

32 - bit RISC CPU

memory

8MB FLASH, 32MB SDRAM, and SD card slots can extend FLASH

Operation panel

LCD LCD display (128 * 64 pixels), 3 LED lights, 6 sets of buttons

The sensor

Through the sensor, the reflector, the carbon strip ends the sensor, and the print head lifts the sensor

RTC

standard

Transmission interface

Series port (rs-232 maximum transport speed: 115200 BPS)

Parallel Port (Parallel Port)

USB 2.0

PS / 2 keyboard interface

Built-in Ethernet server

Built-in fonts

Eight types of lattice Numbers

A set of Monotype ® CG Triumvirate Bold Condensed vector fonts and True Type Font Type generator

You can download Windows fonts through software

A dimensional barcode

Code 39, Code 39C, Code 128UCC, Code 128 subsets A.B.C., Code 11, Codebar, interleaved 2 of 5, EAN -13, EAN -128, upc-a, puc-e, EAN and UPC 2 (5) dights add - on, CHINA POST, MSI, PLESSEY, POSTNET

Two dimensional barcode

PDF - 417, Maxicode, DataMatrix, QR code

Programming language

TSPL - EZ

Safety certification

FCC Class A, CE Class A, c-tick Class A, UL, CUL, TUV/GS, CCC, CB

Environmental conditions

Operating temperature 5-40 C, storage temperature: -5-60 C

Editing software

BarTender Labeling Software

Customer optional

Stand-alone keyboard (Plus/KU KU - 200-200), an external type wireless network module, contact mask barcode scanners, long-distance linear image barcode scanners, guillotine cutter, spiral cutter knife type of thick paper

Dealer selection

There is no
