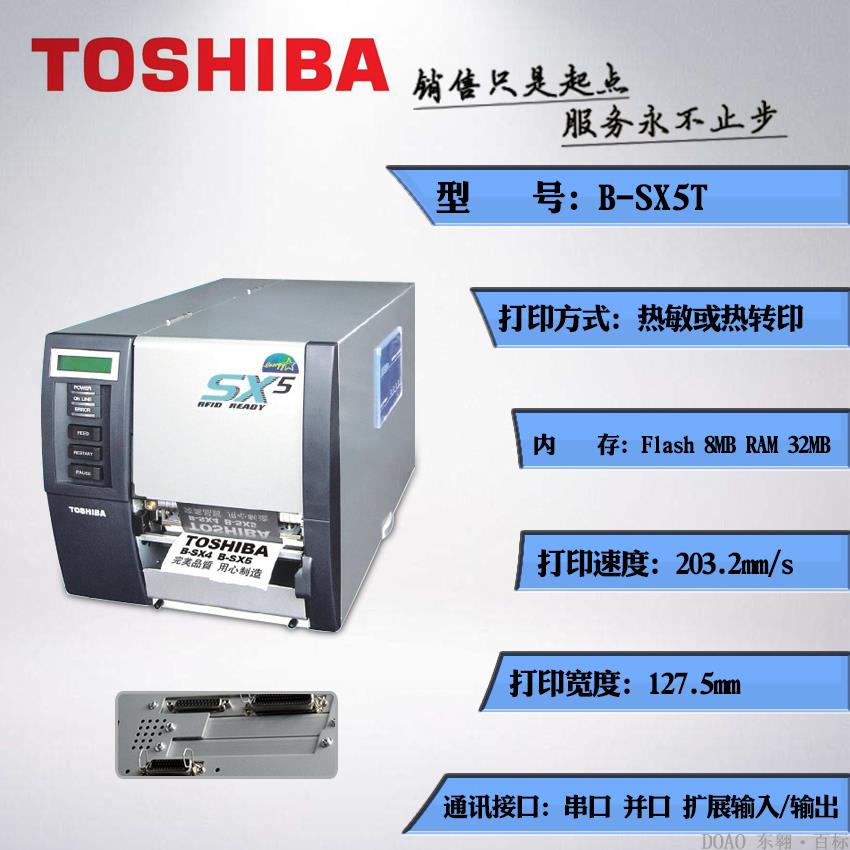

Specifications:
specifications
B - SX4
B - SX5
technology
Heat transfer/direct heat mode
The print head
Hanging pressure type
The resolution of the
203dpi (8 points/mm)
306dpi (12.05 / mm)
Print width
(the widest) 104 mm
(the widest) 127.5 mm
Print the length of the
(longest) 1,498 mm
The printing speed
254 mm per second (10ips)
203.2 mm per second (8ips)

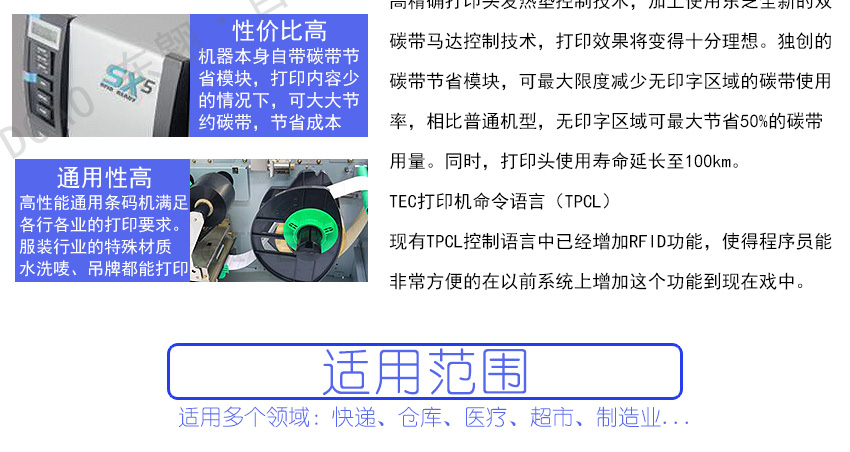

Tape to save
optional
The standard
interface
2 serial port, bi-directionial parallel interface, extended I/O *, PCMCIA I/F *, 10/100 Internet card *, USB * *
The barcode
UPC/EAN/JAN, Code39, Code93, Code128, NW7, MSI, Industrial2 of 5, ITF, Postnet, RM4SCC, kix-code, RSS14
Two-dimensional code
Data Matrix, PDF 417, Maxicode, QR code, Micro PDF 417
The font
Bitmap fonts (21 kinds), Outline fonts (7 kinds), Writable characters (132 kinds), optional Ture Type fonts (20 kinds) *
Optional parts
Swing cutter, twist cutter, stripper and rewinding device * * *, USB embedded network card, extended I/O * *, 2 PCMCIA slot I/F board card, RFID parts
Size (mm)
291 (wide) * 460 (long) * 308 (high)
The weight of the
18kg (not included)
The label medium and the carbon strip
19kg (not included)
The label medium and the carbon strip
* the selection of b-sx4t; * * a standard for b-sx5t
