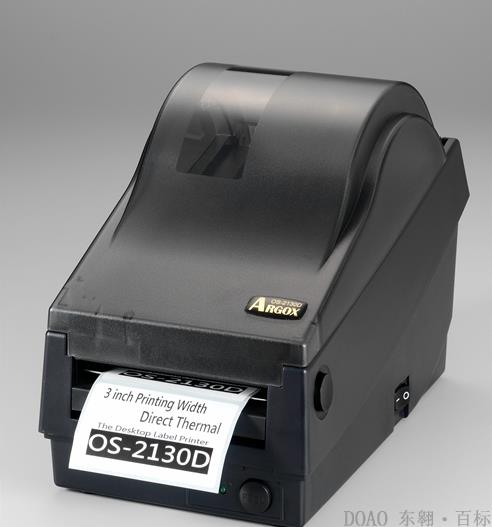

Arogx os-2130d/os-2130de barcode printer tag printer

Arogx os-2130d/os-2130de bar code printer

Brand: Arogx
Model: os-2130d/os-2130de
Product main features: DE Argox OS - 2130 - d/OS - 2130 for a small desktop labels, bar code printer to provide thermal type label printing, the main transport interface for USB 2.0, can connect the notebook computer printing, suitable for all kinds of services, such as: the cashier counter, weighing, email, bank, ticketing, patient tracking, stores and retail, etc. Have 4 MB flash memory and 8 MB SDRAM, and built-in RTC (Real Time Clock), let users do not need to use computer to print the information such as Time, date on the label, the alarm bell warning function can remind users paper used or paper, etc. In addition to USB, the transport interface also includes the rs-232, RJ11 (connecting the money cabinet) and the built-in Ethernet (os-2130de).

DetailParameterDownloadVideo data

Os-2130d / 0-2130de bar code printer technical parameters

Printing mode thermal type

Resolution 203dpi (8 point/mm)

Print width 2.83 inches

Print speed up to 4ips

Printing length 100 inches (continuous pattern)

Memory 8MB of DRAM (6MB user available)

4MB Flash ROM (2MB user available)

CPU 32-bit microprocessors

Communication interface serial port, USB, money box interface

The label sensor is reflected

Display two LED lights

The interface 1 button

Type 5 international standard glyph (1.25 mm ~ 6mm)

Up to 24 x24

Four direction 0 ° ~ 270 °

The Windows font can be downloaded from the software

One dimensional barcode PPLA: Code39 Code93, Code128 / subset of A, B and C, Codabar, Interleaved 2 of 5, UPC A/E / 2 and 5 add - on, EAN 13/8, UCC/EAN - 128, UCC/EAN 128 random weight, Postnet, Plessey, HIBC, Telepen, FIM

PPLB: Code39 Code93, Code128 / subset of A, B and C, Codabar, Interleaved 2 of 5, UPC A/E / 2 and 5 add - on 13/8, EAN UCC/EAN - 128, Postnet, Matrix 2 of 5, UCC Code - 128

2d barcode PPLA: PDF - 417, MaxiCode, Data Matrix (ECC200 only), QR Code

PPLB: PDF - 417, MaxiCode, QR Code

PPPLA: PCX, BMP, IMG and HEX formats

PPLB: PCX and binary raster

Instruction set PPLA, PPLB

software

Windows driver (Windows 7 / Win 8 / Win 10/vista/XP)

Label making software - BarTender

Software tool Printer Utility/Font Utility

Paper carrier maximum width: 7.7 cm

Minimum width: 2.54 cm

Paper thickness: 0.0635 ~ 0.254 mm

Maximum diameter: 10.9 cm

Diameter: 1.3 cm

Dimensions 134 mm (wide) x163 mm (high) x228 mm (long)

Weigh 1.2 kg

Power switch power supply,

Input: 100V ~ 240V plus or minus 10%, 1.8 A, 47 ~ 63Hz,

Output: 24VDC, 2.5 A, 60W

Work environment operating environment: 4 ℃ ~ 38 ℃, relative humidity 10% ~ 90%),

Storage condition: - 20 ℃ to 50 ℃

Optional accessories paper holder, paperless and external paper holder

Product certification CE, FCC, UL, CUL, CCC, RoHS
